Platform for Imaging by Microscopy

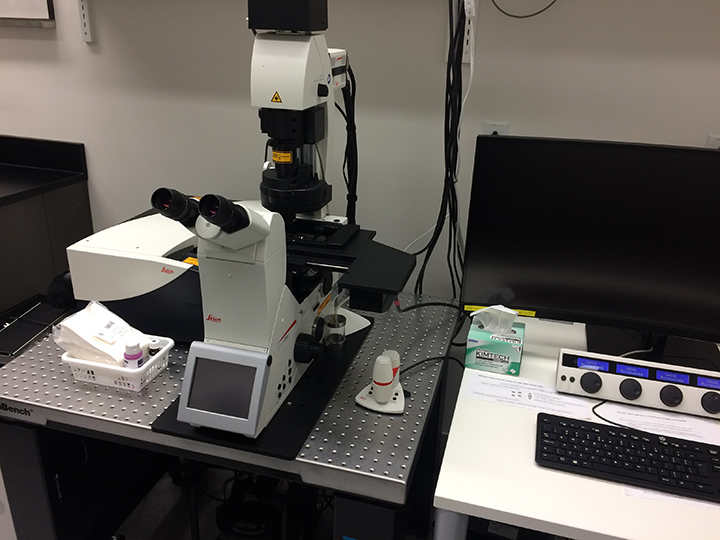

SP8-DLS: Leica TCS SP8 laser scanning confocal microscope with DLS light sheet module

Laser scanning confocal microscope (Leica TCS SP8) on an inverted stand, fully motorized stage, fast z movement (Leica Super Z Galvo stage). Five internal detectors (three HyD high-sensitivity, two PMT) with spectral detection, one transmitted light detector (PMT). DLS light sheet microscopy module for rapid imaging of larger samples. Environmental control for temperature, CO2, humidity, possible through a mobile stage-top incubator (Tokai Hit).

Objectives for confocal imaging:

5x HC PL FLUOTAR 5x/0.15
10x HC PL APO 10x/0.40 CS2
20x HC PL APO 20x/0.75 CS2
40x HCX PL APO 40x/0.85 CORR CS,0.11-
63x/oil HC PL APO 63x/1.40 OIL CS2

Objectives for light sheet imaging:

10x DSL HC APO L 10x/0.30 W DLS
25x DSL HC FLUOTAR L 25x/0.95 W DLS

Lasers for fluorescence excitation:

405 nm for blue emitters
488 nm for green emitters
552 nm for red emitters
638 nm for far-red emitters
